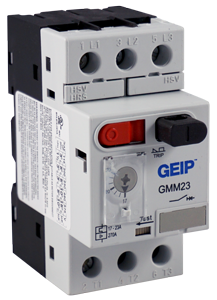

Manual Motor Starters
Technical Data Sheet
Features
Specifications
- Full range of main accessories auxiliary contacts (both side and front mounting), shunt trips and under-voltage releases
- Compact design
- Manual push button control / short-circuit current and overload protection
- Range of NEMA4 (IP65) enclosures and accessories
- Adjustable current setting for overload protection and magnetic trip indication
- Disconnection function
- Temperature compensated
- Remote control via under-voltage release or shunt trip modules
- Short-circuit service breaking capacity up to 100 kA
| Part Number | Sku Code | Full Load AMPs | Drawing |
|---|---|---|---|
| GMM0.16 | 8787 | 0.01 - 0.16 | - | GMM0.25 | 8788 | 0.16 - 0.25 | - | GMM0.4 | 8789 | 0.25 - 0.4 | - | GMM0.63 | 8790 | 0.41 - 0.63 | - | GMM1.0 | 8791 | 0.63 - 1.0 | - | GMM1.6 | 8792 | 1.0 - 1.6 | - | GMM2.5 | 8793 | 1.6 - 2.5 | - | GMM4 | 8794 | 2.5 - 4 | - | GMM6.3 | 8795 | 4 - 6.3 | - | GMM10 | 8796 | 6.3 - 10 | - | GMM14 | 8797 | 10 - 14 | - | GMM18 | 8798 | 14 - 18 | - | GMM23 | 8799 | 18 - 23 | - | GMM27 | 8800 | 23 - 27 | - | GMM32 | 8801 | 27 - 32 | - |
